Roster of Equipment

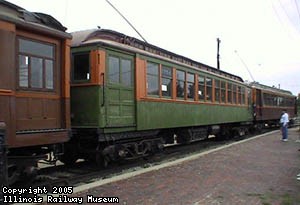

Chicago Rapid Transit 1754

Builder:Jewett Car Company
Year Built:1906
Seats:48
Length:47ft 2in
Width:8ft 8in
Height:12ft 8in
Weight:67000 lbs
Brakes:AMU
Motors:2 WH 302B
Control:ALFM-XM110
Compressor:D3-EG
Trucks:Bald MCB
Description:Double End / Double Truck / Railroad Roof / Wood
Photographer: James Kolanowski
