Chicago, Burlington & Quincy 504

The Chicago, Burlington & Quincy 504, an operating EMD SD24, was brought into the diesel shop in February 2002. Currently in BN paint as 6244, this SD will soon be restored to Q paint. The first steps will be back dating the steps on all four corners, replacing a couple patches to some rusted steel around the short hood, and moving some of the sill doors to their correct locations. The photos below show much of the progress to date, the photos are displayed with the most recent near the top to the earliest near the bottom.

| February 2006 | January 2006 |

| 2005 | 2004 | 2003 | 2002 |

Back to the top

February 2006

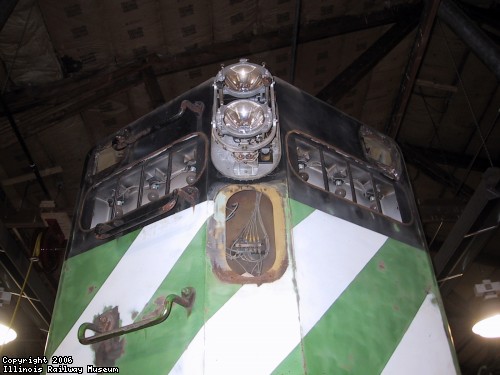

The newer class light frames were cut out, and all surrounding areas ground smooth in preperation of the installation of the original style class lights. Photo by James Kolanowski, Feb 16, 2006.

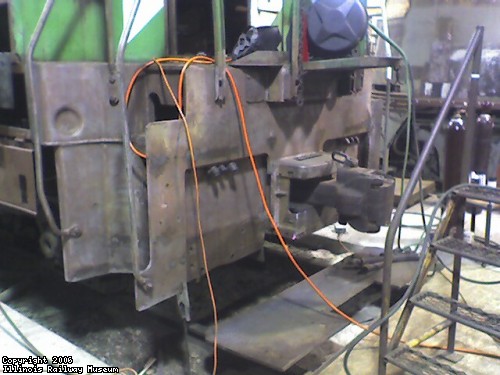

A couple of the weld on the front were ground smooth. Photo by James Kolanowski, Feb 16, 2006.

Back to the top

January 2006

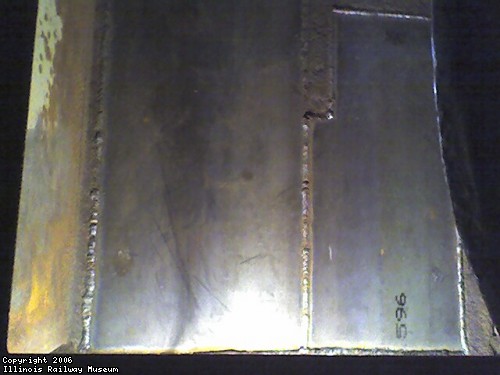

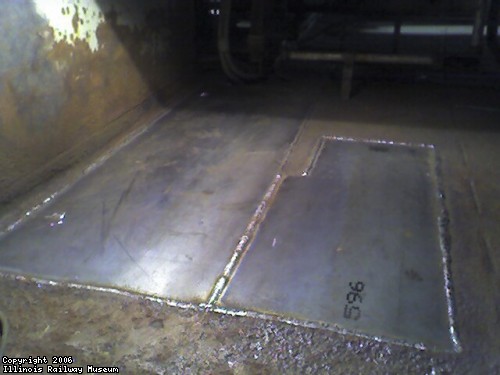

The floor of the nose at cab level was cut to size and set in place, although it has yet to be welded. The entire area under this floor has been needlechipped or wire wheeled. Next comes priming and painting. Photo by James Kolanowski, Jan 22, 2006.

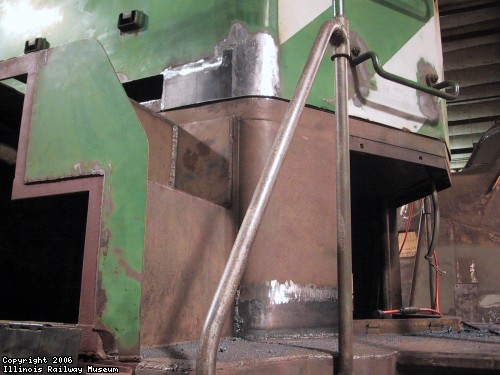

More needlechipping, and more steel was replaced around the nose, including some of the structural members behind the skin. Photo by James Kolanowski, Jan 22, 2006.

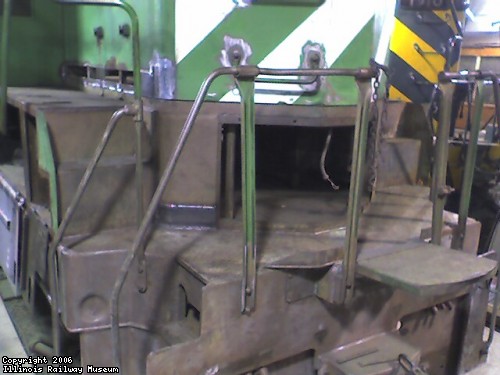

The bottom portion of the front pilot was removed in preperation of the new original pilot, which still has to be built. The entire area was needlechipped and all unneeded holes welded closed. Like the rear pilot, certain areas will need to be filled in with 3/4" steel. Photo by James Kolanowski, Jan 7, 2006.

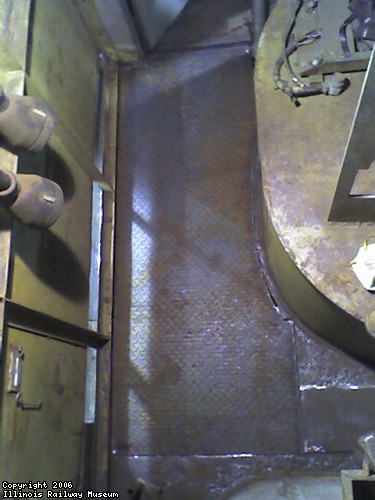

This area of the sub-floor under the nose was replaced. The patch to the right is actually the top of the central air duct. Photo by James Kolanowski, Jan 7, 2006.

The entire area under the sub-floor was needlechipped and undercoated to prevent any further rust and deterioration in our lifetime. Photo by James Kolanowski, Jan 7, 2006.
