Roster of Equipment

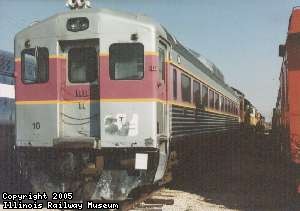

Chicago & North Western 9933

Builder:Budd Mfg. Company
Year Built:1950
Model:RDC 1
Horsepower:560
Seats:90
Length:85ft
Width:10ft
Height:14ft 7in
Weight:113120 lbs
Brakes:HSC-D22
Engine:Two GMC 6280
Trucks:RDC
Description:Diesel-Mechanical Coach
Photographer: James Kolanowski

Photo Album Available
