Illinois Railway Museum

Roster of Equipment

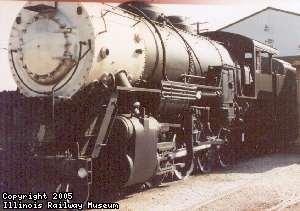

Lake Superior & Ishpeming 35

Builder:Baldwin Locomotive Works
Year Built:1916
Wheel Arrangement:2-8-0
Length:73ft 4in
Width:10ft 6in
Height:15ft 8in
Weight:270000 lbs
Brakes:6ET
Tractive Effort:60480 lbs
Cylinders:26x30
Boiler Pressure:200 psi
Drivers:50in
Photographer: James Kolanowski
