Illinois Railway Museum

Roster of Equipment

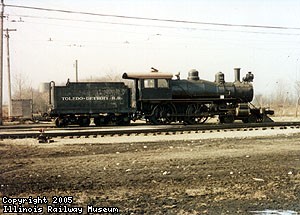

Toledo & Detroit Railroad 16

Builder:Baldwin Locomotive Works
Year Built:1914
Wheel Arrangement:4-4-0
Length:57ft 1in
Width:10ft 6in
Height:14ft
Weight:233700 lbs
Brakes:G-6
Tractive Effort:18200 lbs
Cylinders:18x24
Boiler Pressure:190 psi
Drivers:67in
Photographer: Walter P. Murphy
